Interlocking garage floors are modular tiles that connect over an existing concrete floor to create an extraordinarily durable, finished surface. GarageTek’s polypropylene flooring systems provide an alternative to bare concrete and floor coatings, with an elevated design that allows airflow underneath and individual tiles that can be accessed or replaced if needed.
For homeowners exploring garage flooring, modular tiles combine a clean, finished appearance with practical maintenance and flexibility. GarageTek offers two professionally installed flooring systems, ProTek Modular Floor and RibTRAX Pro, each with a different surface design for different aesthetics.
Not sure which interlocking garage floor tiles are right for your space? Get a professional flooring recommendation as part of your complimentary GarageTek design consultation.
What Are Interlocking Garage Floor Tiles?
Interlocking garage floor tiles are individual panels that connect at their edges to form a continuous surface. Instead of bonding directly to concrete like a floor coating, they create a modular floor over the existing slab.

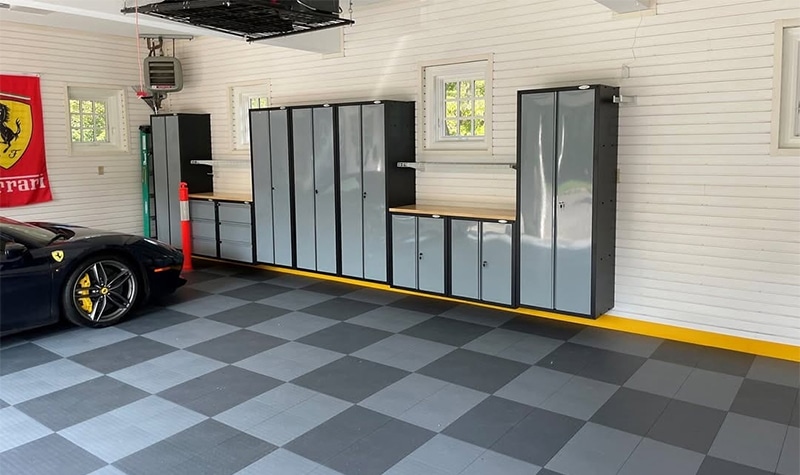

GarageTek’s ProTek tiles are made from 100% virgin polypropylene, a naturally non-porous material. They use a six-point interlocking system and an elevated design that allows airflow between the finished floor and the concrete below.

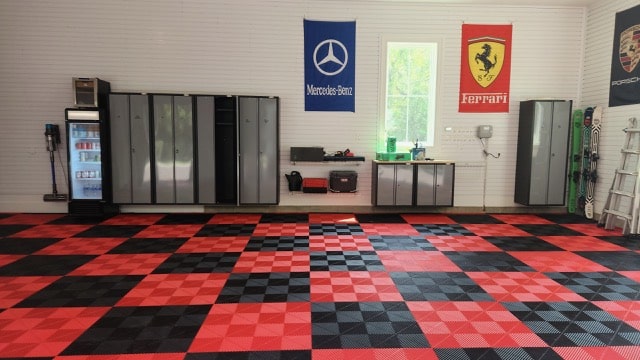

RibTRAX Pro also uses polypropylene construction but features a perforated surface. This design allows water and other fluids to pass through the openings to the channeling system below the walking surface.
For homeowners comparing polypropylene garage tiles, construction and surface design are important considerations. GarageTek’s flooring provides a clean, finished surface while maintaining the flexibility of a modular system. Explore GarageTek’s modular garage flooring options to find the right fit for your needs.
Why Choose Modular Garage Floor Tiles?
Garage floors have to handle parked vehicles, foot traffic, dirt, moisture, and the everyday items that come in from outside. At the same time, a finished garage should feel clean and connected to the rest of the home.
Modular garage floor tiles address both priorities. If an individual GarageTek tile becomes damaged or permanently stained, that tile or section can be accessed and replaced rather than requiring the entire floor to be redone.
The elevated construction also separates the finished surface from the concrete below and allows airflow underneath. With RibTRAX Pro’s perforated surface and ProTek’s ribs, water and other fluids are able pass below the walking surface.
How Do Modular Garage Floor Tiles Compare to Floor Coatings?
Homeowners researching garage flooring often compare modular tiles with epoxy and polyaspartic or polyurea coatings. Each approach creates a finished garage floor, but the installation, maintenance, repairability, and long-term flexibility differ.
GarageTek specializes in modular garage flooring rather than epoxy or polyaspartic coatings. The comparison below highlights some of the practical differences homeowners may want to consider.
| Attribute | Epoxy | Polyaspartic / Polyurea | Modular Tiles |
| Installation time | 2–3 days | 1 day | 2–4 hours |
| Cure time | About 3 days | 24 hours | None |
| Prep sensitivity | Very high | Very high | Low |
| Moisture tolerance | Poor | Poor | Excellent |
| Hot tire pickup | Common | Common | None |
| Durability | 2-5 years | 2-5 years | 15-20+ years |
| UV stability | Can yellow | UV-stable | UV-stable |
| Slip resistance | Low | Medium | Excellent |
| Repairability | Difficult | Difficult | Easy |
| Comfort | Hard | Hard | Softer underfoot |
| Typical cost | $3-$7/sq. ft. | $6-$12/sq. ft. | $7-$10/sq. ft. |
One of the biggest differences is repairability. A coating is applied as a continuous bonded surface, while modular flooring is made up of individual interlocking tiles. If a GarageTek tile becomes damaged or permanently stained, the affected tile or section can be accessed and replaced rather than requiring the entire floor to be redone.
Modular flooring is less sensitive to surface preparation than the coating options shown above and does not require a coating cure period. For homeowners who prioritize flexibility, straightforward repairs, moisture tolerance, and a professionally finished garage, interlocking tiles provide a practical alternative to traditional coatings.
GarageTek does not install epoxy, polyaspartic, or polyurea floor coatings. Our flooring systems are professionally installed modular tiles designed to work as part of a complete garage organization system.
How Does Garage Floor Tile Installation Work?
Professional garage floor tile installation starts with evaluating the space and selecting a flooring system suited to the garage and homeowner’s priorities.
GarageTek’s process includes four key steps:
- Measure the garage. Accurate measurements help establish the flooring requirements and layout.
- Choose the flooring system. ProTek Modular Floor and RibTRAX Pro offer different surface designs based on appearance and how you want the floor to function.
- Install the tiles. GarageTek’s professional installation team connects the modular tiles over the existing garage floor.
- Coordinate the finished space. Flooring can be planned alongside cabinetry, TekPanel wall organization, shelving, and overhead storage as part of a complete garage system.
Because the tiles interlock rather than relying on a coating applied directly to the concrete, the installation process is fundamentally different from an epoxy or polyaspartic floor.
How Durable Are Interlocking Garage Floor Tiles?
When comparing garage flooring, measurable product specifications provide more useful information than broad claims about durability.
GarageTek’s ProTek tile is supported by 780 small pegs and rated at more than 200 psi. For context, an average parked car is approximately 35 psi.
ProTek has also undergone ASTM E303 slip-resistance testing. GarageTek reports a friction coefficient of 0.66 when dry and 0.50 when wet.
The tiles are made from 100% virgin polypropylene, which is naturally non-porous and resistant to staining when properly maintained. Maintaining ProTek Modular Floor is straightforward. When the surface gets dirty, it can be cleaned with household cleaning supplies, much like other floors in the home. RibTRAX Pro maintenance is similar. If debris becomes caught between the ribbed openings, it can be removed with a standard vacuum or shop-vac unit.
ProTek vs. RibTRAX Pro: Which Is Right for Your Garage?
GarageTek offers two modular flooring systems with different surface designs. Neither is universally better. The right choice depends on the appearance and functionality you want from your garage floor.
| Feature | ProTek Modular Floor | RibTRAX Pro |
| Material | 100% virgin polypropylene | Polypropylene copolymer |
| Surface | Solid, flat-top appearance | Perforated, ribbed surface |
| Tile size | 12 x 12 inches | 15.75 x 15.75 inches |
| Interlocking design | Six-point system | Six-point system |
| Moisture approach | Elevated construction allows airflow underneath | Perforations allow water and other fluids to pass below the surface |
| Published load rating | More than 200 psi | Consult GarageTek for current product-specific specifications |
| Best suited to | Homeowners who prefer a solid, uniform floor surface | Homeowners who prefer a perforated surface that allows water and other fluids to pass below the walking surface |
When to Consider ProTek
ProTek is a strong option for homeowners who prefer a solid, uniform floor surface. Its published specifications also provide measurable information about load capacity and slip resistance.
When to Consider RibTRAX Pro
RibTRAX Pro may be a better fit when a perforated surface is preferred. Its design allows water and other fluids to pass through the surface to the channeling system below.
A GarageTek design professional can help you compare both systems based on your garage, how you use the space, and the look you want to achieve.
How Do You Maintain Modular Garage Flooring?
Routine care helps keep modular flooring clean and looking its best. GarageTek’s garage maintenance tips recommend removing loose debris and cleaning the floor with appropriate cleaning products.
The modular construction also provides access when deeper cleaning is necessary. Sections can be separated to reach the tiles and concrete underneath, and individual tiles can be replaced when necessary.
Frequently Asked Questions
How Much Weight Can Interlocking Garage Floor Tiles Hold?
GarageTek’s ProTek tile is rated at more than 200 psi and supported by 780 small pegs beneath the tile surface. An average parked car is approximately 35 psi.
Is ProTek or RibTRAX Pro the Better Interlocking Tile System?
Neither is universally better. ProTek provides a solid, uniform surface, while RibTRAX Pro uses a perforated design. Both tiles allow water and other fluids to pass below the walking surface. The right choice depends on your preferred aesthetic.
Can Damaged Garage Floor Tiles Be Replaced?
Yes. GarageTek’s modular construction allows individual tiles or sections to be accessed and replaced if necessary, rather than requiring replacement of the entire garage floor.
Are Interlocking Garage Floor Tiles Slippery When Wet?
Slip resistance varies by flooring system. GarageTek’s ProTek floor has undergone ASTM E303 testing, with reported friction coefficients of 0.66 when dry and 0.50 when wet.
Find the Right Interlocking Garage Floor Tiles for Your Garage
The right garage floor should contribute to a clean, organized, and functional space. GarageTek offers interlocking garage floor tiles through ProTek Modular Floor and RibTRAX Pro, giving homeowners two professionally installed modular flooring options with different surface designs.
A GarageTek design professional can evaluate your space, discuss your priorities, and help you choose a flooring system that works with the rest of your garage.
